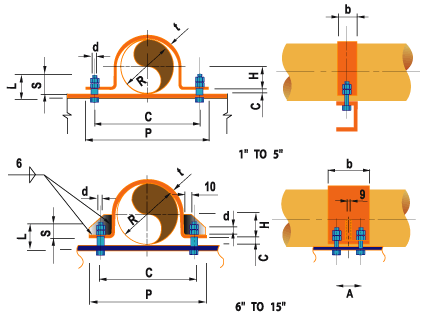

U - Band |
Pipedesign |
|
|
NOM |
C |
G |
H |
P |
R |
b x t |
A |
BOLT/NUT(UNC) |
WEIGHT |
|
1" |
95 |
5 |
12 |
135 |
18 |
50x6 |
|
5/8"x60x50 |
0.8 |
|
1-1/2" |
110 |
5 |
19.5 |
150 |
25.5 |
50x6 |
|
5/8"x60x50 |
0.9 |
|
2" |
120 |
5 |
25.5 |
160 |
31.5 |
50x6 |
|
5/8"x60x50 |
1.0 |
|
2-1/2" |
155 |
5 |
31.5 |
195 |
38 |
75x9 |
|
3/4"x70x55 |
2.3 |
|
3" |
170 |
5 |
39.5 |
210 |
46 |
75x9 |
|
3/4"x70x55 |
2.5 |
|
4" |
195 |
5 |
52 |
235 |
58.5 |
75x9 |
|
3/4"x70x55 |
2.8 |
|
5" |
220 |
5 |
66 |
260 |
72 |
125x9 |
|
3/4"x70x55 |
3.2 |
|
6" |
250 |
10 |
74 |
290 |
86 |
125x9 |
80 |
3/4"x70x55 |
6.2 |
|
8" |
300 |
10 |
100 |
340 |
112 |
125x9 |
80 |
3/4"x70x55 |
7.3 |
|
10" |
355 |
10 |
126 |
390 |
140 |
125x9 |
80 |
3/4"x70x55 |
10.4 |
|
12" |
405 |
10 |
152 |
445 |
165 |
125x9 |
80 |
3/4"x70x55 |
11.8 |
|
14" |
445 |
10 |
168 |
495 |
180 |
125x9 |
80 |
1"x85x65 |
13.4 |
|
16" |
495 |
10 |
193 |
545 |
205.5 |
125x9 |
80 |
1"x85x65 |
14.9 |
