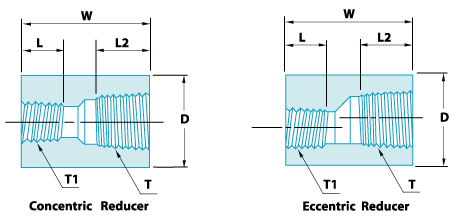

Reducer Threaded |
Pipedesign |
|
3000#, 6000#
|
Nom
Pipe
Size |
Outside |
Length
of |
End
ot End |
||
|
TxT1 |
3000 |
6000 |
L2 |
L |
|
|
1/4"x1/8" |
19 |
25 |
8.0 |
6.5 |
35 |
|
3/8"x1/4" |
22 |
32 |
9.0 |
8.0 |
38 |
|
1/2"x1/4" |
29 |
38 |
11.0 |
8.0 |
48 |
|
1/2"x3/8" |
9.0 |
||||
|
3/4"x1/4" |
35 |
44 |
12.5 |
8.0 |
51 |
|
3/4"x3/8" |
9.0 |
||||
|
3/4"x1/2" |
11.0 |
||||
|
1"x3/8" |
44 |
57 |
14.5 |
9.0 |
60 |
|
1"x1/2" |
11.0 |
||||
|
1"x3/4" |
12.5 |
||||
|
1-1/4"x1/2" |
57 |
64 |
17.0 |
11.0 |
67 |
|
1-1/4"x3/4" |
12.5 |
||||
|
1-1/4"x1" |
14.5 |
||||
|
1-1/2"x3/4" |
64 |
76 |
18.0 |
12.5 |
79 |
|
1-1/2"x1" |
14.5 |
||||
|
1-1/2"x1-1/4" |
17.0 |
||||
|
2"x1" |
76 |
92 |
19.0 |
14.5 |
86 |
|
2"x1-1/4" |
17.0 |
||||
|
2"x1-1/2" |
18.0 |
||||
|
2-1/2"x1-1/4" |
92 |
108 |
23.5 |
17.0 |
92 |
|
2-1/2"x1-1/2" |
18.0 |
||||
|
2-1/2"x2" |
19.0 |
||||
|
3"x1-1/2" |
108 |
127 |
26.0 |
18.0 |
108 |
|
3"x2" |
19.0 |
||||
|
3"x2-1/2" |
23.5 |
||||
|
4"x2" |
140 |
159 |
27.5 |
19.0 |
121 |
|
4"x2-1/2" |
23.5 |
||||
|
4"x3" |
26.0 |
||||
